HUB75E Dot-Matrix Control

Art. Nr.: 90-3680

HUB75E Dot-Matrix Control
Spannungsversorgung: 5V DC / 200mA
Anschlüsse: RJ45 Netzwerk
2 polige Schraubklemme
16 poliger Stiftleiste
Ethernet: 10 Mbit/s | 100 Mbit/s
Data Fail: Hold
Blackout
Saved Picture
Dot-Matrix Parameter: Panel Anzahl (1-10) Module
Panel Breite (32, 64, 96, 128) Pixel
Panel Höhe (8, 16, 32, 64) Pixel
Panel Scan Rate (1/4, 1/8, 1/16, 1/32)
Panel RGB Groups (1, 2)
Panel Color Sequence (RGB,BRG…)
Farbtiefe (3-24 Bit)
User Picture: Benutzer konfigurierbare Ausgabe
die nach dem Einschalten oder nach
Datenausfall ausgegeben wird.
Protokoll: Art-Net™ 4 (maximal 32 Universen)
TPM2.net (maximal 16384 Kanäle)
Abmessung: 80mm x 50,5mm
(ohne überstehende Anschlusselemente)

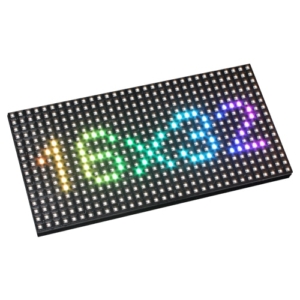

HUB75 Dot-Matrix Panel 16x32

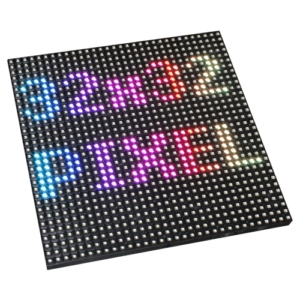

HUB75 Dot-Matrix Panel 32x32
HUB75 Dot-Matrix Panel 32x64
HUB75 Dot-Matrix Panel 64x64

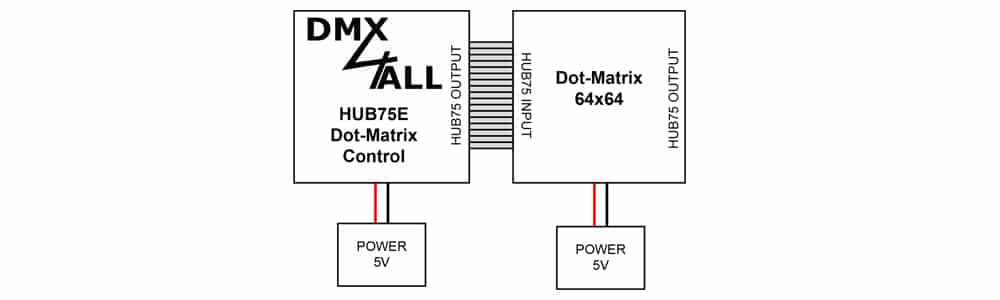

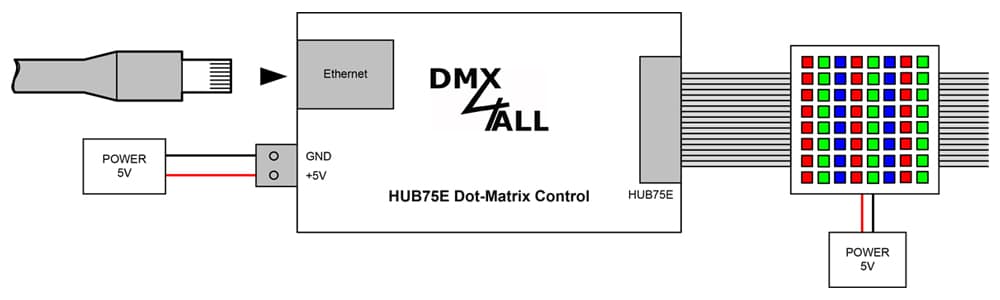

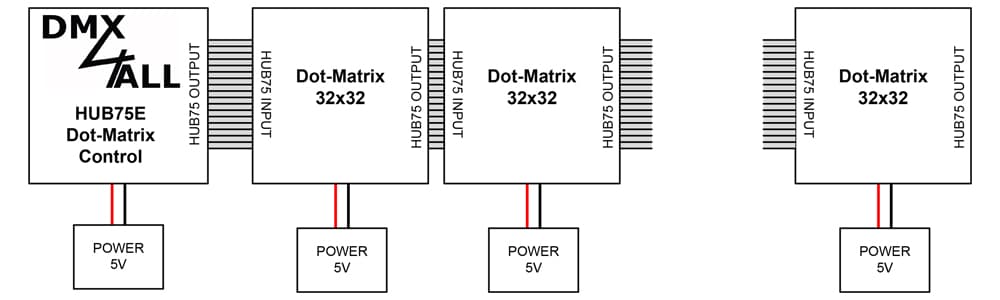

HUB75 Dot-Matrix Schematic
HUB75 Dot-Matrix Schematic
HUB75 Dot-Matrix Schematic
HUB75 Dot-Matrix Schematic

Art-Net ™ Designed by and Copyright Artistic Licence Holdings Ltd.
